Mold Design and Manufacturing

A mold is a tool used in product design to mold components into different shapes and sizes. From the simplest products, such as a phone case, to the most complex products, such as a car engine, molds are used to turn the desired design into reality.

Plastic Injection Mold Design

One of the most common manufacturing processes for plastic mold design is injection molding. This automated process involves injecting molten plastic into a mold cavity. The mold is then cooled until the material solidifies, resulting in a finished product with a consistent shape and size. This method is often used to manufacture many high-volume, affordable plastic parts, from toothbrushes to TV housings. It is very fast and cost-effective compared to other production methods. To make the production process of high-volume products more cost-effective, multi-cavity mold designs can be used to manufacture many identical parts at once.

What Is Mold Design?

Mold design is the process of creating the blueprint for a mold that will be used to shape materials like plastic, metal, or rubber into specific forms. It involves detailed engineering, considering factors like material selection, mold flow, cooling systems, and part ejection.

Key Elements of Mold Design

Part Design Considerations
- Ensuring uniform wall thickness to prevent defects.
- Adding draft angles for easier part ejection.
- Designing ribs and gussets for strength without excessive weight.
Mold Material Selection
- Steel Molds – Durable and ideal for high-volume production.
- Aluminum Molds – Less expensive and best for low- to medium-volume production.
- Hybrid Molds – A combination of materials for optimized performance and cost.
Gate Design
- Determines how the material enters the mold cavity.
- Common types: edge gate, submarine gate, hot runner systems.
Cooling System Design
- A well-designed cooling system improves cycle time and reduces defects.
- Cooling channels optimize heat dissipation for uniform part cooling.
Ejection System
- Uses ejector pins, sleeves, or air blasts to remove finished parts.
- Ensures smooth and undamaged part removal.
Mold Flow Analysis
- A simulation process to predict how molten material flows within the mold.
- Helps prevent warping, air traps, and shrinkage issues.

Injection Molding Process

Step 1: Mold Design & Engineering

Using CAD (Computer-Aided Design) and CAM (Computer-Aided Manufacturing) software, engineers develop a precise mold design that meets production requirements.

Step 2: Mold Material Selection

The appropriate mold material is chosen based on the production volume, material type, and durability requirements.

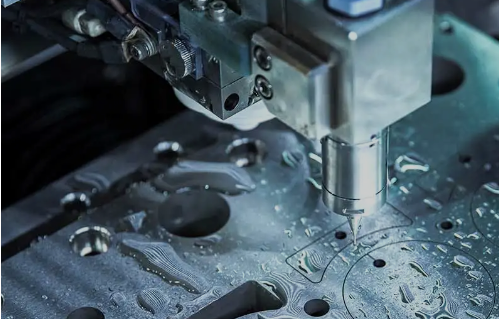

Step 3: CNC Machining & EDM Processing

CNC (Computer Numerical Control) Machining: Used to create the mold cavity with high precision.
EDM (Electrical Discharge Machining): Used for complex geometries and fine details.

Step 4: Heat Treatment & Surface Finishing

Heat treatment strengthens the mold for long-term durability.
Polishing, texturing, or coating is applied to achieve the desired surface finish.

Step 5: Mold Assembly & Testing

Components are assembled, including cores, cavities, runners, and cooling channels.
Testing (also known as mold trial or T1 sampling) is conducted to ensure the mold functions correctly.

Step 6: Mold Validation & Production

The mold undergoes multiple tests and optimizations to ensure it meets production standards.
Once approved, it enters mass production.

Injection Molding Cycle

The series of events during the injection molding of a plastic part is called the injection molding cycle. The injection molding cycle begins with the mold closing, followed by the injection of polymer into the mold cavity. Once the mold cavity is filled, a holding pressure is maintained to compensate for material shrinkage. In the next step, the screw turns, feeding the next shot of plastic to the front screw. This causes the screw to retract in preparation for the next shot of plastic. Once the part has cooled sufficiently, the mold opens and the part is ejected.

Types of Molds Used in Manufacturing

Plastic Injection Molds
- Used for mass production of plastic parts.
- Can be single-cavity (one part per cycle) or multi-cavity (multiple parts per cycle).
Die Casting Molds
- Used for metal parts such as aluminum, zinc, and magnesium components.
- Requires high pressure to inject molten metal into the mold.
Compression Molds
- Used for rubber and composite materials.
- Material is placed in the mold cavity and compressed under heat and pressure.
Blow Molds
- Used for hollow plastic parts like bottles and containers.
- Air pressure expands the heated plastic to take the shape of the mold.
Thermoforming Molds
- Used for creating plastic packaging and trays.
- Thin plastic sheets are heated and shaped over a mold.

Benefits of High-Quality Mold Design and Manufacturing

✔ Precision and Consistency – Ensures high repeatability for mass production.
✔ Reduced Defects – Proper design minimizes defects such as warping, sink marks, and flash.
✔ Longer Mold Life – High-quality materials and engineering extend mold lifespan.
✔ Faster Production – Optimized mold design reduces cycle times.
✔ Cost Savings – Reducing waste and improving efficiency lowers overall production costs.

Why Choose Professional Mold Design and Manufacturing Services?

Companies that specialize in mold design and manufacturing provide:

Expert engineering support to optimize mold performance.
Advanced CNC machining and EDM technology for high precision.
Mold flow analysis to prevent defects before production.
Comprehensive testing and validation to ensure reliable performance.

Key Components of Injection Mold Design

Injection mold design typically includes several essential components that need to be considered carefully. These include:

Mold Cavity and Core: The cavity is the space within the mold where the molten plastic takes the shape of the part, while the core is the part of the mold that forms internal features or undercuts.
Gating System: The gating system directs the molten plastic into the mold cavity. The type of gate used, whether it’s a hot runner or cold runner, can affect the efficiency of the process and the quality of the part.
Cooling System: Efficient cooling is one of the most important aspects of mold design. The cooling system minimizes cycle time and reduces the chances of part defects such as warping. Conformal cooling channels, designed using 3D printing technology, are increasingly used to improve cooling efficiency.
Ejection System: Once the part is solidified, the ejection system removes it from the mold. Proper design of the ejection mechanism is crucial for part integrity and ease of part removal.

Cost-Effective Mold Design Solutions

One of the most important factors in mold design is achieving a balance between quality and cost. Effective mold design can significantly reduce production costs by improving efficiency and reducing scrap rates. Several strategies can help optimize mold designs for cost-effectiveness:

Standardization of Mold Components: Using standard components in mold design, such as ejector pins, core pins, and inserts, helps reduce the cost and complexity of mold construction.
Optimized Gate Design: The gate location and type (such as hot runner vs. cold runner) affect material waste, cooling time, and part quality. By optimizing these factors, mold designers can minimize material usage and improve cycle time.
Material Selection: Choosing the appropriate mold material for the job is crucial. For example, using a steel mold for high-volume production while opting for aluminum

Sustainability in Mold Design

As industries continue to prioritize environmental responsibility, sustainable mold design has become increasingly important. This includes the selection of eco-friendly materials, energy-efficient production methods, and the use of recycled materials wherever possible.

Recyclable Materials: The use of biodegradable and recyclable polymers reduces waste and the environmental impact of injection molding.
Energy-Efficient Cooling and Heating: Advanced cooling systems and efficient heating methods help reduce energy consumption, contributing to more sustainable operations.
Closed-Loop Systems: Some companies are implementing closed-loop systems that recycle scrap material from the molding process, ensuring that no material goes to waste.

The Evolution of Mold Design and Engineering

Traditional mold design was primarily dependent on manual drafting and trial-and-error approaches. However, today’s mold design integrates:

Computer-Aided Design (CAD) Software – Enables precise 3D modeling and simulation.
Mold Flow Analysis (MFA) – Predicts material flow, cooling efficiency, and potential defects.
Finite Element Analysis (FEA) – Analyzes stress distribution and structural integrity of the mold.
Rapid Prototyping – Uses 3D printing and CNC machining for quick design validation.

Advanced Materials in Mold Manufacturing

The choice of mold material directly impacts production performance, durability, and cost. Some of the latest innovations include:

1. High-Performance Steel Alloys

H13 and P20 tool steels are widely used for high-strength, wear-resistant molds.
Coated steel molds with DLC (Diamond-Like Carbon) coatings reduce friction and extend lifespan.

2. Aluminum and Hybrid Molds

Aluminum molds are lightweight and ideal for short-run productions.
Hybrid molds combine steel and aluminum for a balance of cost-effectiveness and durability.

3. Additive Manufactured Mold Inserts

3D-printed metal inserts allow for intricate cooling channels (conformal cooling), improving cycle time and part quality.
Reduces lead time and material waste compared to traditional mold-making processes.

Smart Manufacturing in Injection Mold Production

1. Industry 4.0 Integration

Modern mold manufacturing integrates IoT (Internet of Things) and AI-driven analytics to monitor mold performance in real-time. Sensors track:
✔ Temperature fluctuations
✔ Pressure variations
✔ Cooling efficiency
✔ Wear and tear of mold components

These insights help in predictive maintenance, reducing downtime and ensuring consistent part quality.

2. Automated CNC Machining & Robotics

5-axis CNC machining improves precision and allows for complex geometries.
Robotic automation in mold assembly enhances consistency and reduces labor costs.

3. Sustainable and Eco-Friendly Mold Manufacturing

Water-based mold lubricants reduce environmental impact.
Recyclable mold materials support a circular manufacturing approach.
Energy-efficient heating and cooling systems lower production costs and carbon footprint.

The Role of Mold Standardization in Global Manufacturing

Standardized mold components streamline production across multiple industries, reducing cost and time-to-market. Some key benefits of standardization include:

Interchangeable Components – Reduces downtime when replacing mold parts.
Global Compatibility – Ensures consistency in production across different factories.
Cost Reduction – Eliminates the need for custom-made components in every mold.

Advanced Mold Manufacturing Techniques

As part designs become more intricate and complex, the tools used to create molds must also adapt. Advanced CNC machining, 3D printing, and EDM (Electrical Discharge Machining) have become key players in mold manufacturing, enabling the production of highly accurate and complex mold structures.

3D Printing: The introduction of 3D printing in mold manufacturing, especially for rapid prototyping and low-volume production, has been a game-changer. Additive manufacturing technologies allow mold designers to create molds or mold inserts with extremely complex geometries that would be almost impossible to achieve using traditional methods. It’s particularly useful in creating intricate cooling systems, complex cavities, or parts with unusual shapes.
CNC Machining: CNC machining, particularly with multi-axis machines, allows for the precise creation of mold cavities and cores, essential for achieving tight tolerances and high-quality surfaces.
EDM (Electrical Discharge Machining): EDM is an essential technique for making molds with very hard materials and achieving high precision in intricate features. It allows manufacturers to create complex geometries that conventional cutting methods might struggle with.

Sustainability in Mold Design and Manufacturing

Sustainability has become a crucial focus in manufacturing, and mold design is no exception. The push for eco-friendly solutions has led to significant innovations in both the materials used in molds and the production methods employed.

Sustainable Materials: Mold manufacturers are increasingly using bio-based plastics and recyclable mold materials, which reduce the environmental impact of mold production. By choosing eco-friendly materials, manufacturers can contribute to the reduction of plastic waste and support a circular economy.
Energy-Efficient Processes: Energy-efficient technologies in mold design, such as advanced cooling systems and optimized heating elements, help minimize energy consumption during the production process. These technologies not only reduce operational costs but also reduce the carbon footprint of manufacturing.
Recycling of Scrap Materials: Waste generated during the mold-making process is being recycled more effectively, with scrap metals and plastics being repurposed for reuse in other industries. This helps manufacturers reduce material costs and minimize their environmental impact.

Mold Design and Manufacturing FAQ

1. What is mold design and manufacturing? Mold design and manufacturing is the process of creating a mold that will be used to shape materials (usually plastics or metals) into a specific part or product. This involves designing the mold, which includes the cavity and core of the mold, the gating system, cooling system, and ejection system, followed by the fabrication and testing of the mold.

2. Why is mold design important in manufacturing? Mold design is crucial because it directly impacts the quality of the final product, production speed, and overall cost-efficiency. Proper design ensures uniformity, minimizes defects, and reduces cycle times. A well-designed mold helps to produce high-quality parts at a lower cost and with less waste.

3. What materials are typically used in mold manufacturing? Common materials used in mold manufacturing include:

Steel (for high-volume production, durability, and strength)
Aluminum (for low to medium volume production and prototyping)
Copper alloys (for heat transfer efficiency in high-performance molds)
Beryllium copper (used for creating molds with good thermal conductivity)
Stainless steel (used for molds that require high resistance to corrosion)

4. What are the key steps involved in mold design and manufacturing? The process generally follows these steps:

Conceptualization: Defining part design, material requirements, and the mold's functionality.
Design: Developing the 3D CAD model of the mold, including features such as cavities, gates, cooling channels, and ejection mechanisms.
Prototyping: Creating prototypes to test the design and make adjustments.
Fabrication: Manufacturing the mold components using CNC machining, EDM (electrical discharge machining), or other methods.
Assembly: Assembling the mold components into a working mold.
Testing and Validation: Performing test runs to identify issues and refine the mold.

5. How long does it take to design and manufacture a mold? The time required for mold design and manufacturing varies based on the complexity of the mold and the part being produced. For simple molds, it can take as little as a few weeks, while for complex molds, the process could take several months. Typically, factors like material selection, mold complexity, and part geometry play a role in determining the timeline.

6. What are some common challenges in mold design? Some of the most common challenges in mold design include:

Part complexity: Intricate designs with undercuts, thin walls, or complex geometries require advanced techniques and tooling.
Material selection: Choosing the right material for both the mold and the part can be difficult, particularly for high-performance or specialized materials.
Cooling efficiency: Designing an efficient cooling system that reduces cycle time while preventing defects such as warping.
Cost management: Balancing the need for quality and precision with cost constraints can be challenging.

7. What is mold flow analysis and why is it important? Mold flow analysis is a computer simulation tool that helps mold designers predict how molten material will flow through the mold. This tool can identify potential issues like air traps, incomplete filling, and flow imbalances before production begins. Mold flow analysis helps optimize mold design to reduce defects, improve cycle times, and ensure that the final product meets specifications.

8. How can mold design be optimized for efficiency? Optimizing mold design for efficiency involves:

Reducing cycle time: Through better cooling system design, material flow analysis, and careful gate design.
Standardizing components: Using standard mold components (ejector pins, guide pins, etc.) to reduce manufacturing costs and time.
Minimizing material waste: By selecting the appropriate gate design and material types to reduce excess material consumption.
Integrating automation: Using automated systems for mold ejection and part removal to speed up production.

9. What role does the cooling system play in mold design? The cooling system is one of the most critical components of mold design because it directly affects the cycle time and part quality. Proper cooling ensures that the molded parts solidify evenly, preventing defects such as warping, sink marks, and residual stress. The use of conformal cooling channels—channels that are designed to follow the contour of the mold more precisely—helps improve cooling efficiency and reduce cycle times.

10. Can molds be reused or repaired? Yes, molds can often be reused or repaired. High-quality molds are designed for longevity, and with proper maintenance, they can last for hundreds of thousands or even millions of cycles. If a mold starts to show signs of wear or damage, it can be repaired through processes like welding, re-machining, or replacing damaged parts. In some cases, molds may be refurbished or modified to meet new product requirements.

11. What are the advantages of using aluminum molds versus steel molds? Aluminum molds offer the advantage of faster lead times and lower initial costs, making them ideal for low to medium volume production and prototyping. They also have better thermal conductivity, which can improve cooling efficiency. However, steel molds are more durable and suitable for high-volume production runs, offering longer lifespan and better wear resistance.

12. How do mold designs impact the cost of manufacturing? Mold design plays a significant role in determining the cost of manufacturing. Well-designed molds can reduce scrap, decrease cycle time, and enhance part quality, all of which contribute to lower overall production costs. Conversely, poorly designed molds may result in frequent breakdowns, increased maintenance costs, and higher material waste, thus raising the overall cost of production.

13. What is the difference between single-cavity and multi-cavity molds? A single-cavity mold produces one part per cycle, making it suitable for low-volume production or parts with high complexity. A multi-cavity mold, on the other hand, can produce multiple parts simultaneously, increasing productivity and reducing the per-unit cost for high-volume production. The choice between single-cavity and multi-cavity molds depends on production volume, part complexity, and cost considerations.

14. How do you choose the right mold design for your product? Choosing the right mold design depends on several factors, including:

Production volume: High-volume production may require a multi-cavity mold or a more durable material.
Part geometry: Complex parts may require specialized mold features like inserts, cores, or sliding mechanisms.
Material: Different materials may require different design considerations for cooling, gating, and ejection.
Budget and timeline: Cost constraints and lead time can also affect the choice of mold design.

15. How can I improve the lifespan of my mold? To improve the lifespan of a mold, consider the following:

Proper maintenance: Regular inspection and maintenance of the mold will ensure it stays in good condition.
Material selection: Using high-quality, durable materials for the mold will enhance its longevity.
Proper cooling: Adequate cooling systems prevent overheating, which can lead to premature wear.
Mold coatings: Applying coatings such as nitriding or chrome plating can reduce wear and extend the life of the mold.

16. How does mold design affect part quality? The design of the mold directly affects the final quality of the part. Proper mold design ensures uniform material flow, consistent cooling, and precise ejection, all of which contribute to high-quality parts. Poor mold design can lead to defects such as warping, flash, short shots, or poor surface finish.
