Mold Design and Injection Molding

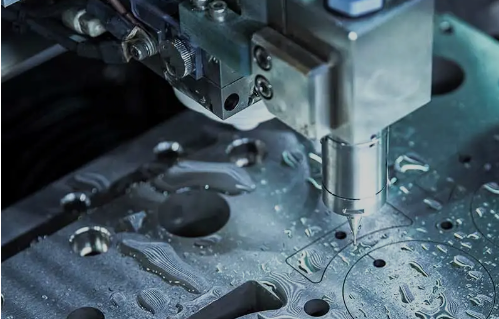

Mould design and manufacturing is a manufacturing technique used to mass produce identical plastic parts with good tolerances. In injection mould design and manufacturing, polymer pellets are first melted and then injected under pressure into a mould where the liquid plastic cools and solidifies. The materials used in injection moulding are thermoplastic polymers that can be coloured or filled with other additives.

Almost every plastic part around you is made using injection moulding: from automotive parts to electronic housings to kitchen appliances.

Mould design and injection moulding is so popular because the unit cost is extremely low when produced in large quantities. Industrial plastic injection moulding offers high repeatability and good design flexibility. The main limitation of injection mould design and manufacturing usually comes down to economics, as a high initial investment in moulds is required. In addition, the turnaround time from design to production is slow (at least 4 weeks).

Mold Design: The Foundation of Precision Manufacturing

Mold design is a highly technical process that determines the accuracy, durability, and efficiency of the injection molding process. A properly designed mold minimizes defects, reduces production costs, and ensures consistency in high-volume manufacturing.

Key Considerations in Mold Design

1. Material Selection

   • The type of plastic (ABS, PC, PP, Nylon, etc.) influences mold design, cooling channels, and gate placement.

   • High-temperature plastics require molds made from hardened steel, while lower-volume production may use aluminum molds.

2. Cavity and Core Design

   • Single-cavity molds produce one part per cycle, whereas multi-cavity molds improve production efficiency by making multiple parts at once.

   • The core and cavity must be precision-machined to ensure proper alignment and part tolerances.

3. Gate Design and Placement

   • Gates control how molten plastic enters the mold cavity, affecting flow, pressure, and part quality.

   • Common gate types include edge gates, sub-gates, and hot runner systems.

4. Cooling System Optimization

   • Efficient cooling channels reduce cycle times and improve part consistency.

   • Conformal cooling (3D-printed cooling lines) improves temperature control for complex parts.

5. Ejection System Design

   • Ejector pins, sleeves, and lifters ensure smooth part removal without damage.

   • Proper ejection design prevents warping or sticking of parts in the mold.

6. Mold Durability and Lifespan

   • High-production molds use hardened tool steel (H13, P20), while lower-production molds can use softer materials.

   • Regular maintenance ensures longer mold life and sustained production quality.

Injection Molding: Mass Production of Precision Parts

Once the mold is designed and manufactured, it is installed into an injection molding machine for mass production. This process involves injecting molten plastic into the mold under high pressure, allowing it to cool and solidify before being ejected.

The Injection Molding Process

1. Material Preparation

   • Plastic pellets are dried and heated to the optimal temperature.

   • Additives such as colorants, UV stabilizers, or reinforcements may be mixed.

2. Injection Phase

   • The molten plastic is injected into the mold cavity under controlled pressure and speed.

   • Hot runner systems minimize material waste compared to cold runners.

3. Cooling Phase

   • Proper cooling ensures dimensional stability and prevents defects such as warping or shrinkage.

   • Cooling time varies based on material properties and mold design.

4. Ejection Phase

   • Ejector pins or plates push the molded part out of the cavity.

   • Parts are then inspected for quality control.

Injection molding process

Plastic injection molding design is a fast and efficient method of producing plastic parts. The tool used is the injection mold, which consists of two main parts: the core and the cavity. The two halves of the mold are brought together and molten plastic is injected into the mold.

Once the molten plastic cools, the two halves of the mold are separated and the part is ejected. Depending on the structure of the mold and the number of parts required, this process can be repeated dozens, hundreds or even thousands of times.

Common Defects and Solutions in Injection Molding

1. Flash (Excess Material on Part Edges)

   • Solution: Optimize clamping force and mold parting line design.

2. Sink Marks (Depressions in Thick Sections)

   • Solution: Adjust cooling rates and reduce injection pressure.

3. Short Shots (Incomplete Fill of the Mold)

   • Solution: Increase injection speed and temperature.

4. Warping (Part Deformation After Cooling)

   • Solution: Optimize mold temperature and gate placement.

5. Burn Marks (Dark Streaks on Surface)

   • Solution: Adjust venting and reduce injection speed.

Applications of Mold Design and Injection Molding

• Automotive: Dashboards, bumpers, engine covers

• Medical: Syringes, surgical instruments, diagnostic devices

• Electronics: Smartphone housings, connectors, circuit board components

• Consumer Goods: Food containers, toys, home appliances

Mold design and injection molding are at the heart of modern plastic manufacturing, enabling the mass production of high-quality, durable, and cost-effective plastic components. These two processes are critical in industries such as automotive, medical, electronics, aerospace, and consumer goods, ensuring the creation of parts with precise tolerances, excellent surface finishes, and optimal material properties. This in-depth guide will explore the various aspects of mold design, the injection molding process, material selection, tooling considerations, common defects, industry applications, and future advancements.

The Fundamentals of Mold Design
Mold design serves as the blueprint for successful injection molding. A poorly designed mold can result in manufacturing defects, increased waste, higher costs, and longer production cycles. The goal of mold design is to create a durable, high-performance tool that optimizes production efficiency and part quality.

Mold Types
Different types of molds are used in injection molding, depending on production volume, material requirements, and part complexity.

Single-Cavity Molds: Used for small-scale production, prototyping, or specialized applications.

Multi-Cavity Molds: Allows for the simultaneous production of multiple identical parts, increasing efficiency.

Family Molds: Contains multiple cavities for different parts, reducing production costs for related components.

Hot Runner Molds: Uses heated nozzles to reduce material waste and improve cycle times.

Cold Runner Molds: More cost-effective for certain applications but generate more material waste.

Key Mold Components
Every injection mold consists of several critical components that determine its functionality and performance:

Core and Cavity: The core forms the interior features of the part, while the cavity shapes the exterior.

Sprue, Runners, and Gates: Channels through which molten plastic flows into the cavity.

Cooling System: Ensures proper temperature control to minimize warping and shrinkage.

Ejection System: Uses ejector pins, sleeves, or plates to remove the finished part from the mold.

Mold Flow Analysis
Before manufacturing a mold, engineers use mold flow simulation software to analyze how the molten plastic will fill the cavity. This process helps optimize:

Gate location for uniform filling

Cooling system efficiency

Warpage and shrinkage reduction

Cycle time improvement

Different Types of Injection Molding Processes

Injection molding is a versatile and widely used manufacturing process that allows for the mass production of plastic parts with high precision and efficiency. Depending on the material, application, and desired characteristics of the final product, various injection molding techniques have been developed to meet specific industry needs. This article explores the different types of injection molding processes, their applications, and advantages.

---

1. Traditional Injection Molding

Traditional injection molding, also known as thermoplastic injection molding, is the most common process used to manufacture plastic parts. It involves melting thermoplastic pellets and injecting the molten material into a mold cavity under high pressure. Once cooled and solidified, the part is ejected from the mold.

Applications:

• Consumer products (toys, kitchenware, packaging)

• Automotive parts (bumpers, dashboards, interior panels)

• Medical devices (syringes, surgical instruments)

• Electronics housings and components

Advantages:

✔ High production efficiency
✔ Excellent part consistency and repeatability
✔ Wide range of material choices

---

2. Overmolding

Overmolding is a specialized injection molding technique where one material is molded over another to create a multi-material part. Typically, a softer thermoplastic or rubber-like material is overmolded onto a rigid plastic substrate.

Applications:

• Tool handles with soft grips

• Toothbrushes with ergonomic rubber sections

• Electronic device casings with shock-absorbing features

Advantages:

✔ Enhances grip and ergonomics
✔ Reduces assembly steps
✔ Improves durability and aesthetics

---

3. Insert Molding

Insert molding involves placing a pre-formed component (such as a metal insert) into the mold cavity before injecting plastic around it. This process is commonly used to create parts that require embedded metal components.

Applications:

• Threaded fasteners in plastic parts

• Electrical connectors

• Medical implants with metal reinforcements

Advantages:

✔ Stronger bonds between plastic and inserts
✔ Eliminates the need for secondary assembly
✔ Reduces manufacturing costs and labor

---

4. Multi-Shot Injection Molding (Two-Shot or Multi-Component Molding)

Multi-shot injection molding allows for the injection of two or more different plastic materials into a single mold in a single cycle. The process creates multi-material or multi-colored parts without the need for assembly.

Applications:

• Automotive interiors with soft-touch surfaces

• Keyboards with multi-colored keys

• Medical devices with different material sections

Advantages:

✔ Increases design flexibility
✔ Reduces production time and assembly steps
✔ Improves part strength and durability

---

5. Gas-Assisted Injection Molding

Gas-assisted injection molding (GAIM) is a process where nitrogen gas is injected into the molten plastic to create hollow sections. This technique reduces material usage while maintaining structural integrity.

Applications:

• Automotive trim components

• Large furniture parts (e.g., chair armrests)

• Handles for tools and appliances

Advantages:

✔ Reduces material consumption and weight
✔ Eliminates sink marks and warpage
✔ Enhances part strength and rigidity

---

6. Thin-Wall Injection Molding

Thin-wall injection molding is used to produce lightweight, thin-walled plastic parts with high precision. This process requires specialized machinery with high injection speeds and pressures.

Applications:

• Food packaging containers

• Medical device casings

• Lightweight electronic enclosures

Advantages:

✔ Reduces material costs and weight
✔ Improves part cooling time and cycle speed
✔ Allows for high-volume production

---

7. Micro Injection Molding

Micro injection molding is a highly precise process used to create small and intricate plastic components with dimensions measured in microns. It is essential for industries that require miniature plastic parts.

Applications:

• Microfluidic devices for medical applications

• Tiny gears and components for electronics

• Small connectors in aerospace and automotive industries

Advantages:

✔ High precision and detail in tiny components
✔ Supports medical and high-tech applications
✔ Enables mass production of micro-sized parts

---

8. Reaction Injection Molding (RIM)

Reaction injection molding differs from traditional injection molding as it involves the chemical reaction of liquid polymers that expand and solidify inside the mold. This process is commonly used for producing lightweight, durable components.

Applications:

• Automotive bumpers and panels

• High-performance industrial enclosures

• Medical and laboratory equipment casings

Advantages:

✔ Produces lightweight yet strong parts
✔ Ideal for large and complex components
✔ Allows for low-pressure molding of rigid materials

---

9. Liquid Silicone Rubber (LSR) Injection Molding

LSR injection molding is used to produce flexible and durable silicone rubber parts. The process is ideal for manufacturing high-precision components with excellent thermal and chemical resistance.

Applications:

• Medical tubing and implants

• Seals and gaskets

• Consumer electronics buttons and keypads

Advantages:

✔ Excellent temperature and chemical resistance
✔ High flexibility and biocompatibility
✔ Suitable for high-volume production

---

10. Powder Injection Molding (PIM) – Metal & Ceramic Injection Molding

Powder injection molding (PIM) includes metal injection molding (MIM) and ceramic injection molding (CIM), where fine metal or ceramic powders are mixed with a binder and injected into a mold. The part is then sintered to remove the binder and achieve full density.

Applications:

• Aerospace and defense components

• High-performance medical implants

• Small and complex metal parts for automotive and electronics

Advantages:

✔ Enables mass production of metal and ceramic parts
✔ Achieves complex geometries with high precision
✔ Reduces waste compared to traditional metalworking
