Plastic injection Mold Design Services

DAYIN is your qualified supplier for cost-effective, detailed mold design using 3D CAD software based on your specific requirements. With 35 years of experience in product design, mold design and manufacturing, and mold making, we have designed and manufactured plastic injection molds, plastic injection molds, and custom molds for more than 100 companies worldwide.

Plastic injection molding is one of the most widely used manufacturing processes for producing plastic parts and components. The design of the injection mold is crucial to ensuring that the final product meets the desired quality, functionality, and cost-effectiveness. Whether you are a business in need of high-volume production or a prototype to test the concept, choosing the right plastic injection mold design services is essential. Below, we delve into various aspects of plastic injection mold design services and the benefits they offer.

Our Expertise in Mold Design Services

Injection Mold Design
Our injection mold design capabilities are broad and comprehensive. We will design molds for your application, including co-injection (sandwich), fusible (lost, soluble) core molding, gas-assisted molding, in-mold decoration/lamination, injection compression, inserts and out-inserts, lamellar (micro-layer) molding, low-pressure molding, micro-injection molding, powder injection molding, or non-standard tooling for push-pull injection molds.
Plastic Injection Mold Design
Our plastic injection molds can be used to manufacture a variety of parts from electronic housings to automotive components. We will guide you through the process of developing molds for the manufacture of a large number of plastic parts. Our injection molds allow you to quickly produce high-precision parts with excellent repeatability. Plastic injection mold parts are compatible with a wide range of materials. The cost of producing the parts is very low, and the parts require little finishing after molding.

Understanding Plastic Injection Molding

Plastic injection molding is a process where plastic material is injected into a mold to create the desired shape. The material is heated to a molten state and forced into a mold cavity under high pressure. The mold then cools and solidifies the plastic, forming the final part. This process allows for high-precision, high-volume production of complex parts with excellent consistency.

The design of the injection mold is one of the most critical steps in the manufacturing process. A well-designed mold ensures that the parts produced are of high quality, efficient to produce, and cost-effective.

Key Factors in Plastic Injection Mold Design

Mold Material Selection: Mold materials need to be strong and durable to withstand high pressures, temperatures, and wear over time. Common materials used for injection molds include steel and aluminum. Steel molds are highly durable and best suited for high-volume production, while aluminum molds are more cost-effective and ideal for prototypes or small-volume runs.
Mold Geometry: The shape and size of the mold are designed based on the part's geometry. Factors such as draft angles, radii, and wall thickness are considered to ensure that the mold can produce the part accurately. The design of the mold also includes features such as gates, vents, and runners that help control the flow of the material during the injection process.
Part Design Considerations: A successful mold design starts with a part design that is easy to manufacture. Features like uniform wall thickness, proper draft angles, and rounded corners are crucial for ensuring that the mold can be easily ejected without damaging the part. The part design should also facilitate the easy flow of plastic material to reduce defects and improve production efficiency.
Cooling System: The cooling system in the mold design is vital for ensuring the rapid cooling of the plastic material after injection. Proper cooling channels help reduce cycle time, increase production efficiency, and improve the quality of the final part. The design of the cooling system can have a significant impact on the overall cost-effectiveness of the manufacturing process.
Mold Venting: Proper venting is essential in plastic injection molding to release any trapped air or gases that may form during the injection process. The mold design must include vents to ensure that these gases are expelled, preventing defects like air pockets, burn marks, and short shots.
Ejection Mechanism: The ejection system in the mold is responsible for removing the molded part from the cavity once it has cooled. The ejection system must be designed carefully to avoid damaging the part and to ensure smooth and reliable part removal. Common ejection methods include ejector pins, air blasts, and stripper plates.

Benefits of Professional Plastic Injection Mold Design Services

High-Quality and Precision Parts: A well-designed mold ensures that the final products have high accuracy and consistency. Injection molding can produce parts with very tight tolerances, making it ideal for industries like automotive, medical, electronics, and consumer goods that require high-quality, precise parts.
Cost-Effective Production: While the initial mold design and manufacturing process can be expensive, it is highly cost-effective in the long run for high-volume production. The design of the mold ensures that parts can be produced at scale efficiently, reducing the cost per part and minimizing material waste.
Quick Turnaround Times: With a well-designed mold, businesses can reduce the lead time for production. The injection molding process is quick and efficient, with cycle times typically ranging from a few seconds to a few minutes, depending on the part size and complexity. This allows businesses to get their products to market faster.
Customization and Flexibility: Plastic injection molding services offer a high degree of customization. The mold design can be tailored to meet the specific requirements of a product, whether that involves intricate details, multi-component assemblies, or high-strength parts. Additionally, molds can be adjusted or modified if changes to the product design are needed.
Prototyping Services: Many companies offer prototyping services using plastic injection molds. Prototypes allow businesses to test the design and functionality of their parts before committing to large-scale production. This is an essential step in ensuring that the final product meets all requirements and performs as intended.
Material Variety: Injection molding can be used with a wide range of plastic materials, from standard polymers to specialized engineering plastics. Depending on the application, businesses can choose materials that offer the desired strength, flexibility, heat resistance, or other specific properties. Mold design services often assist in selecting the most suitable material for the intended use.
Reduced Risk of Defects: Professional mold designers use their expertise to ensure that the mold is designed to prevent common issues such as warping, sink marks, and surface defects. Proper mold design minimizes the risk of defects during production, ensuring that parts are manufactured to the highest standards.
Support for Complex Designs: Advanced mold design services can accommodate complex parts with intricate features, undercuts, and fine details. Whether you need parts with thin walls, high strength, or multi-cavity molds, experienced designers can create molds that allow for the efficient production of even the most complex designs.

Custom Mold Manufacturer for Your Business Goals

In today’s competitive market, having the right manufacturing solutions can make a world of difference for your business. Whether you're producing consumer goods, automotive parts, medical devices, or industrial components, partnering with a custom mold manufacturer can help bring your designs to life with precision, quality, and cost efficiency. Custom molding is essential for creating parts that meet specific business goals and requirements, especially when unique designs or functionality are needed.

The Role of Custom Mold Manufacturing

Custom mold manufacturing plays a vital role in the production process by offering tailored solutions for businesses. By using molds that are specifically designed for your project, you can achieve higher levels of accuracy, efficiency, and innovation. Whether you require prototypes, low-volume production, or large-scale manufacturing, working with a professional mold manufacturer ensures that your product is made to the highest standards.

Process for Reviewing Plastic Injection Molding Designs

A necessary part of injection mold design services is a review of a design to ensure it meets the necessary requirements. Although it may be viewed as a quality check, in actuality, it is the final examination of a design such that it meets Abtec’s high standards and fits the parameters of the client’s needs. Every injection mold process involves a set of steps that are closely followed and reviewed such that they meet company specifications. Plastic injection mold design services review is organized to monitor every step of the injection mold process.

Overview
The overview is in regard to the type of mold that needs to be crafted and machined. While the material for the mold is standard, there are aspect of the mold that have to be carefully considered in order to reach the appropriate dimensional criteria. Cavitation, mold construction, and tie bar distance are some factors that engineers consider during the overview process.
Parting Lines
Parting lines are a crucial part of the development of the format of a mold and are determined by the shape of the product, parting sequence, and parting method. Engineers define parting lines at the beginning of the design process in order to limit the amount of secondary machining an injected part may require.
Injection
Injection is the process by which the melted plastic resin is placed inside the mold. The method that is chosen is influenced by the position of the parting line and the orientation of the mold. While hot injection is one of the more common injection methods, there are certain types of injection mold products that can be better served by cold injection. This particular aspect of the injection mold process is determined by the computer rendering and includes the type of gate, its size, and its location.
Venting
Venting is an important part of mold design since vents allow air to escape as the mold is filled. The strategic placement of vents ensures the quality of the molded product and the smooth flow of the plastic resin. In mold design, the location of the vents is closely examined with the general rule being the placement of vents opposite of the gate. Other placements of vents may be necessary and are determined by the type and design of the mold.
Cooling
During cooling, an injected molded product solidifies and assumes its shape. The length of cooling time varies in accordance with the product being molded and its complexity. The factors that affect cooling time are the part geometry, the type of plastic material, the shape and size of the mold cavity, the wall thickness of the part, and the heat required for the injection process. The accurate calculation of the cooling time is crucial for part quality and a basic part of Engineers’ overview.
Ejection
When the plastic component in the mold has cooled sufficiently, the part is ejected from the mold. The appropriate ejection method depends on a variety of factors, including the number of ejection stages, whether it will be accomplished by pushing or pulling, the surface contact between the pins and the mold, the required clearance, and the desired mechanical properties of the product.
Closing
After the part is ejected from the mold, the mold process repeats. For the process to restart, technicians consider the ejection sequence, any impediments, and the ejector system return method. Although the alignment of a mold can be assumed, it is of particular importance to check the closure of a mold to ensure that it is aligned properly.
Handleability
Injection molding relies on precision, accuracy, and the ability to properly measure dimensional geometries. These factors necessitate a close examination of molds to determine if there is any wear, deformities, or irregularities. In most cases, molds can last for hundreds of thousands of cycles without any errors.
Safety
As with all manufacturing processes, safety is paramount in the injection mold industry. Every part of injection molding is examined and considered when addressing safety issues. the safety of our highly trained personnel is of the utmost importance and is monitored from mold making to product completion.

The Process of Plastic Injection Mold Design and Manufacturing

Initial Consultation: The process begins with a consultation with the client to understand the specific requirements of the part or product. The design team evaluates the design, material requirements, and production goals to provide recommendations for the mold design.
Design and Prototyping: Based on the client's requirements, the design team creates 3D CAD models of the mold and part. These models are used to visualize the mold structure and identify any potential issues in the design. Prototypes are created using rapid prototyping techniques to validate the design before finalizing the mold.

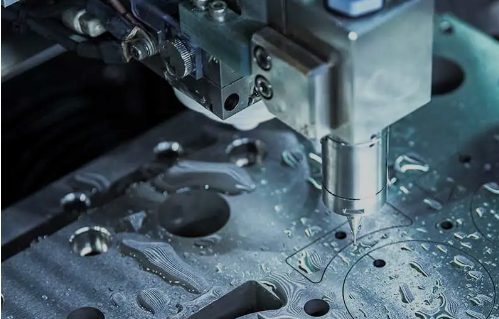

Mold Fabrication: Once the design is approved, the mold is fabricated using high-precision machining techniques. This involves creating the mold cavity, cores, runners, and cooling channels, along with adding any necessary features such as ejector pins or vents.
Mold Testing and Optimization: After the mold is fabricated, it undergoes testing using actual production materials to ensure that it functions properly and produces high-quality parts. If any issues are identified, adjustments are made to optimize the mold for production.
Production: Once the mold has been fully tested and optimized, it is ready for full-scale production. The mold is used to inject plastic into the cavity, creating the parts as specified. The parts are then inspected, and the mold may be maintained or updated for ongoing production runs.

Properties of Thermoplastic Materials

Meltability The defining feature of thermoplastics is their ability to melt and flow when heated. The heat breaks the intermolecular forces, allowing the polymer chains to move freely. Once cooled, these materials solidify and retain their new shape. This process can be repeated many times without compromising the material’s structural integrity.
Recyclability Thermoplastic materials can be easily recycled. Since they can be melted down and reformed, they are often more sustainable compared to other types of plastics. This makes them a popular choice for applications requiring eco-friendly solutions and contributing to circular economy models.
Durability Thermoplastics exhibit good durability and can withstand mechanical stress and environmental conditions. Depending on the specific type of thermoplastic, these materials can be resistant to heat, impact, chemicals, and UV radiation.
Transparency Many thermoplastic materials can be produced in a transparent or translucent form, which is beneficial for applications like packaging, medical equipment, and electronics, where visibility is essential.
Formability Thermoplastics are highly formable and can be processed using various methods such as injection molding, extrusion, blow molding, and thermoforming. This versatility in shaping makes them ideal for producing complex parts in various industries.

Types of Thermoplastic Materials

Polyethylene (PE) Polyethylene is one of the most commonly used thermoplastic materials. It is widely utilized in packaging, plastic bags, containers, and bottles. It’s known for its low-density and high flexibility, as well as its resistance to chemicals and moisture.
Polypropylene (PP) Polypropylene is a strong, lightweight, and chemically resistant thermoplastic material. It is commonly used in automotive parts, packaging, textiles, and medical devices. PP has excellent resistance to fatigue and stress, making it suitable for various high-performance applications.
Polyvinyl Chloride (PVC) PVC is a versatile thermoplastic used in plumbing, construction, medical devices, and electrical cable insulation. It can be rigid or flexible depending on the additives used during manufacturing. Rigid PVC is used for pipes and siding, while flexible PVC is used for flooring and medical tubing.
Acrylonitrile Butadiene Styrene (ABS) ABS is a tough, rigid thermoplastic material known for its impact resistance and strength. It is widely used in consumer electronics, automotive components, and toys. ABS can be easily processed and is known for its excellent surface finish.
Polystyrene (PS) Polystyrene is a versatile thermoplastic that can be found in both rigid and foam forms. It’s commonly used in disposable cutlery, packaging materials, and insulation. It’s relatively inexpensive but lacks the chemical and impact resistance of other thermoplastics.
Polycarbonate (PC) Polycarbonate is a high-performance thermoplastic known for its transparency, impact resistance, and ability to withstand high temperatures. It is commonly used in eyewear lenses, automotive parts, and electronic housings.
Polyethylene Terephthalate (PET) PET is a durable and heat-resistant thermoplastic used predominantly in the manufacturing of bottles and containers. It is often recycled into new plastic products. PET is also used in textiles as polyester fibers.
Nylon (Polyamide) Nylon is a high-strength, heat-resistant thermoplastic commonly used in textiles, automotive components, and engineering plastics. It has excellent wear resistance and is used for parts that require high mechanical properties and chemical resistance.

Advantages of Thermoplastic Materials

Ease of Processing Thermoplastics can be processed using a wide variety of techniques, including injection molding, extrusion, and blow molding, making them incredibly versatile and suitable for mass production.
Recyclability Thermoplastics are easily recyclable, as they can be melted down and reprocessed into new products without significant degradation of material properties. This contributes to environmental sustainability and waste reduction.
Customization With the ability to add fillers, colors, and other additives, thermoplastic materials can be customized to meet specific functional and aesthetic requirements. This makes them ideal for a wide range of applications, from consumer products to high-performance components.
Cost-Effectiveness Thermoplastics tend to be more affordable than other materials, especially when produced in large quantities. Their processing methods, such as injection molding, are efficient and scalable, making them cost-effective for mass production.
Durability Many thermoplastics exhibit excellent mechanical properties such as impact resistance, wear resistance, and chemical stability, making them durable and long-lasting in various applications.

FAQ related to Plastic Injection Mold Design Services:

1. What is plastic injection mold design?

Plastic injection mold design is the process of creating the mold tool used in plastic injection molding. It involves designing the mold to ensure it can produce parts with high precision, quality, and efficiency. The design considers factors like part geometry, material properties, cooling efficiency, and manufacturability.

2. What are the main components of an injection mold?

The main components of an injection mold include:

Cavity: The hollow part of the mold where plastic is injected.
Core: The solid part that forms the inner structure of the molded part.
Ejector system: Used to remove the molded part from the mold.
Runner system: Pathways that guide the melted plastic into the mold cavities.
Cooling system: Channels that allow the mold to cool and solidify the plastic.

3. What are the benefits of professional mold design services?

Professional mold design services ensure that your mold is optimized for both manufacturing and product quality. Benefits include:

Enhanced product quality: High-precision molds result in higher-quality end products.
Cost-efficiency: Proper design minimizes material waste, energy consumption, and time.
Faster production: Optimized mold designs speed up the molding process and reduce lead times.
Longevity of molds: Professional designs consider mold durability, reducing wear and tear.

4. What factors are considered in plastic injection mold design?

Key factors include:

Part geometry and size: The mold must accommodate the complexity and dimensions of the part.
Material selection: Different materials may require specific mold design considerations (e.g., cooling rates, molding pressure).
Ventilation: Proper venting is necessary to allow gases to escape during injection.
Ejection method: The design must ensure easy and safe removal of the part after molding.
Cooling system: Properly designed cooling channels ensure efficient heat removal, reducing cycle times and improving part consistency.

5. How long does it take to design an injection mold?

The timeline for designing an injection mold depends on the complexity of the part and the mold. Typically, the design phase can take anywhere from a few weeks to several months. This includes initial concept designs, mold flow simulations, and final design approvals.

6. How much does plastic injection mold design cost?

The cost of mold design can vary widely depending on the complexity of the part, the material used, and the required precision. Simple designs may cost less, while highly intricate or specialized molds will be more expensive. It's essential to discuss pricing with the design service provider for an accurate estimate.

7. Can you modify an existing mold design?

Yes, existing mold designs can often be modified to improve product quality, efficiency, or accommodate design changes. Modifications may involve altering the cavity, runner system, cooling channels, or even adding new features to optimize the molding process.

8. What is mold flow analysis, and why is it important?

Mold flow analysis is a simulation process that predicts how the plastic material will flow into the mold cavity. It helps identify potential issues like air traps, short shots, or weld lines before physical production begins. This analysis is crucial for ensuring the mold's performance and the part's quality.

9. Do I need to supply a 3D model for mold design?

While it's not always required, providing a 3D model of the part can greatly speed up the design process. The 3D model helps the mold designer better understand the part's geometry and ensure the mold is designed accurately. If you don't have a 3D model, the design team may assist you in creating one.

10. How do I ensure the quality of the injection mold?

To ensure high-quality injection molds:

Work with experienced mold designers and manufacturers.
Ensure thorough testing and quality control checks throughout the design and manufacturing process.
Conduct mold flow analysis to identify potential issues early.
Perform trial runs and fine-tune the mold to optimize production efficiency.

11. Can injection molds be reused?

Yes, injection molds are designed to be reused many times. High-quality molds, made from durable materials like steel, can last for thousands to millions of cycles. Proper maintenance and care can extend the life of a mold and improve its longevity.

12. What is the difference between prototype molds and production molds?

Prototype molds are used for initial testing and low-volume production, while production molds are designed for mass production and typically have a longer lifespan. Production molds are more durable and require more intricate design to withstand high-volume manufacturing.

13. How can I ensure the mold design aligns with my business goals?

To ensure the mold design meets your business goals:

Communicate your specific requirements clearly, including part functionality, production volume, and cost constraints.
Work with experienced designers who understand your industry and products.
Consider long-term goals such as scalability and future product modifications when designing the mold.

14. What materials are commonly used for injection molds?

Common materials for injection molds include:

Steel: Strong, durable, and ideal for long-lasting production molds.
Aluminum: Lightweight and suitable for low to medium production runs.
Beryllium copper: Used for molds that require high thermal conductivity.
Stainless steel: Resistant to corrosion and suitable for specialized molding applications.
