Injection Mold Development and Manufacturing

DAYIN provides both injection molding and tooling services. We make injection molds, test injection molds, prototype molds and support mold production. Tooling companies only focus on plastic or silicone injection molding, while we provide all of these services.

Injection molding is a widely used manufacturing process in the production of plastic parts, widely utilized across various industries such as automotive, electronics, medical devices, consumer products, and more. This process involves injecting molten material into a mold cavity to form specific shapes. The development and manufacturing of injection molds are crucial for creating high-quality parts with the required functionality and precision.

What is Injection Mold Development?

Injection mold development refers to the design, creation, and optimization of the mold used in the injection molding process. A mold is a tool made from metal (usually steel or aluminum) that is used to shape the molten plastic or other materials into a specific part design. The development of injection molds is a multi-step process that includes several stages such as concept design, prototype development, tool creation, testing, and refinement.

Custom Plastic Molds and Design Optimization

The design of an injection mold is one of the last steps in new product development. The product must be ready for mass production. Plastics and other polymers are characterized by high mold costs and mold production takes a considerable amount of time. This technology is not suitable for small-volume products. Therefore, it is important to start mold production only after ensuring that the design is feasible and the part is optimized in terms of shape, weight and design.

When doing the design, we take into account other components such as PCB, batteries, sensors, etc. We perform mathematical calculations of the mechanical characteristics of the part. Overflow calculations are very useful for complex parts to simulate the part production process and reduce the risk of obtaining defective products. Plastic parts should be optimized for the injection molding process. We do this work during the Design for Manufacturing (DFM) phase. In this case, DFM is based on the selected material, manufacturing constraints and planned production volume. After DFM, you can evaluate the cost of the injection mold.

Key Stages of Injection Mold Development

Design and Engineering The first step in mold development is the design phase, where engineers work closely with clients to determine the exact specifications of the part. This includes understanding the geometry, material properties, production volume, and any specific requirements such as parting lines, draft angles, and surface finishes. The design is typically done using CAD (Computer-Aided Design) software, allowing for detailed 3D visualization and modifications before the mold is fabricated.
Mold Flow Analysis After the design phase, a critical step is the mold flow analysis. This simulation tool helps predict how the molten plastic will flow inside the mold. It identifies potential issues such as uneven filling, air traps, or short shots, and ensures that the part can be produced consistently with high-quality results. The mold flow analysis can significantly reduce the risk of defects and enhance the efficiency of the molding process.
Prototype and Tooling Once the design is finalized, the next step is the creation of a prototype mold. This prototype allows the team to test the design and make any necessary adjustments before full-scale production begins. Prototype tooling often uses less expensive materials such as aluminum, which allows for faster and more cost-effective adjustments during the testing phase. The production mold is then manufactured based on feedback from the prototype.
Mold Manufacturing The mold itself is typically made from steel or aluminum, which is then machined, molded, and polished to the required specifications. Advanced manufacturing techniques such as CNC (Computer Numerical Control) machining, EDM (Electrical Discharge Machining), and precision grinding are used to ensure the mold is precise and durable. The molds are then tested to ensure they meet all design criteria, including dimensional accuracy, part fitment, and aesthetic qualities.
Testing and Refining Once the mold has been manufactured, it is used in a trial run to produce a sample part. This sample helps identify any issues with the mold design, including problems with material flow, cooling rates, or ejection mechanisms. Based on the results of the testing phase, adjustments are made to the mold to ensure optimal performance. This step may involve refining the parting line, adding cooling channels, adjusting gate placement, or optimizing ejection systems.
Production and Quality Control After the mold has been refined and is functioning as expected, mass production begins. During this phase, the mold is used repeatedly to produce the required number of parts. Throughout the production process, quality control is performed to ensure that the parts meet the specified tolerances and quality standards. Common quality checks include dimensional inspection, visual inspection, and material testing to verify strength, durability, and functionality.

Types of Injection Molds

There are several different types of injection molds, and the choice of mold type depends on factors such as the part complexity, production volume, and material being used. The main types include:

Single Cavity Molds A single cavity mold produces only one part per cycle. It is typically used for low-volume production or when the part design is relatively simple.
Multi-Cavity Molds Multi-cavity molds have multiple cavities that allow for the production of several parts in a single cycle. These molds are more efficient for medium to high-volume production and can help reduce per-part manufacturing costs.
Family Molds Family molds contain several cavities that can produce different parts in a single cycle. This type of mold is often used for producing smaller parts that share similar design features.
Hot Runner Molds Hot runner molds use a heated manifold system to keep the plastic material in a molten state throughout the injection process. This system can reduce waste, improve cycle times, and offer better control over material flow.
Cold Runner Molds Cold runner molds utilize a channel system that cools down the material before it enters the cavity. Cold runners are more cost-effective than hot runners but often result in higher material waste.

Key Factors to Consider in Mold Development and Manufacturing

Material Selection Choosing the right material for both the mold and the part is essential for ensuring durability and performance. The material must be able to withstand the high pressures and temperatures of the injection molding process. Common materials used for injection molds include steel, aluminum, and specialty alloys.
Tooling and Durability The mold must be designed to handle the stresses of high-volume production. This includes designing for wear resistance, proper cooling channels to maintain consistent temperature, and using durable materials that can withstand repeated use without degrading.
Tolerances and Precision Injection molding requires tight tolerances to ensure that the parts produced meet quality and functionality standards. Precision in mold design and manufacturing is critical for ensuring that the final part has the desired physical and aesthetic properties.
Cooling Systems Efficient cooling systems are vital to reducing cycle times and improving production efficiency. Cooling channels should be strategically placed to ensure uniform cooling throughout the mold and minimize issues like warping and sink marks.
Ejection Systems Ejection systems are necessary to remove the molded part from the mold cavity once it has cooled. Different types of ejection mechanisms, such as mechanical ejection or air/ejector pin systems, may be used depending on the complexity and size of the part.

Benefits of Injection Mold Development and Manufacturing

High Precision and Accuracy Injection molding allows for the creation of parts with high dimensional accuracy and tight tolerances, making it suitable for producing intricate and complex components used in industries like aerospace and medical devices.
Cost-Effectiveness Once the mold is developed, injection molding is a highly cost-effective method for mass production. The ability to produce large quantities of parts quickly and with minimal waste makes it ideal for high-volume production runs.
Material Versatility Injection molding is compatible with a wide range of materials, including various thermoplastics, elastomers, and some metals. This versatility allows manufacturers to create parts with varying properties, such as strength, flexibility, and heat resistance.
Complex Geometry and Design Flexibility Injection molding can produce parts with complex geometries, undercuts, and intricate details. This flexibility allows designers to create products with advanced shapes and features that would be challenging or expensive to produce using other manufacturing methods.
Scalability Injection mold manufacturing is highly scalable, making it suitable for both low and high-volume production runs. Once the mold is developed, it can be used to produce thousands or even millions of parts, depending on demand.

Prototypes before injection mold processing

We make product prototypes by 3D printing or machining engineering plastics during DFM to test our ideas. We use injection molding machines to make pilot batches of prototypes in the final stage. We make mold prototypes or perform rapid mold manufacturing and provide injection molding services for small batch production.

Injection mold development and manufacturing is an intricate process that plays a vital role in modern production industries. The ability to create complex and high-precision parts quickly and cost-effectively is one of the major reasons why injection molding is so widely used. This process is crucial not only for producing large quantities of identical parts but also for ensuring that those parts meet the necessary specifications and quality standards. Let’s explore additional angles of the injection mold development and manufacturing process.

Material Considerations in Injection Mold Manufacturing

The choice of material used in injection mold manufacturing is one of the most important factors that directly affect both the mold’s performance and the final product’s quality. Understanding the different materials available for both the mold and the parts is key to successful injection molding.

Mold Materials
- Steel: Steel is the most commonly used material for injection molds due to its high durability, strength, and resistance to wear. It is often used for high-volume production molds because of its long lifespan and ability to withstand the heat and pressure of injection molding.
- Aluminum: Aluminum is often used for prototype molds or low to medium-volume production because of its lower cost and faster lead time. Aluminum molds are easier to machine and offer shorter cycle times but have a shorter lifespan compared to steel molds.
- Copper Alloys: Copper alloys, such as beryllium copper, are sometimes used in molds requiring enhanced cooling properties. They offer good thermal conductivity, which helps to reduce cycle times and prevent issues like warping.
Plastic Materials for Injection Molding The material selected for the actual part will depend on its intended use, environmental factors, and desired mechanical properties. Some common materials used in injection molding include:
- Polypropylene (PP): A versatile plastic known for its chemical resistance and flexibility.
- Acrylonitrile Butadiene Styrene (ABS): A strong and impact-resistant plastic used in automotive and consumer electronics.
- Polycarbonate (PC): A high-strength plastic with excellent optical properties, often used in electronics and automotive applications.
- Polyethylene (PE): Known for its low-cost and ease of processing, often used for packaging and consumer goods.

Guaranteed mold consistency and availability

Our in-house mold making process
All DAYIN molds are made in our own factory in Vietnam using advanced machines from high-quality raw materials. Our employees and mold making equipment are dedicated to producing precision injection molding tools to high technical standards. This allows us to efficiently, quickly and reliably produce molds that meet the requirements of our manufacturing facilities.

Our tools are suitable for hundreds of millions of runs and can meet customer-specific requirements such as long life or minimum cycle times.

Our mold making facilities produce:
Tools
Components
Plastic products

Cost Factors in Mold Development and Manufacturing

The cost of developing and manufacturing injection molds can vary greatly depending on several factors, including the complexity of the mold, the material selected, and the required production volume.

Tooling Costs The design and creation of a mold tool is the most expensive part of the injection molding process. Steel molds tend to have higher tooling costs, but they offer a longer lifespan and are ideal for high-volume production. Aluminum molds, on the other hand, have lower tooling costs but are generally used for lower production volumes or prototype runs.
Material Costs The material chosen for both the mold and the part will influence the overall cost. High-performance engineering plastics, such as polycarbonate and nylon, may have higher material costs but offer better performance for certain applications. Additionally, the price of raw plastic resin can fluctuate, influencing production costs.
Labor and Overhead Costs Labor costs for designing, machining, assembling, and maintaining molds can add up. Skilled workers are needed to design and create the molds, and ongoing maintenance is essential to ensure mold longevity. The efficiency of the injection molding process also impacts labor costs, as automated systems can reduce manual labor and associated costs.
Production Volume The more parts you plan to produce, the more cost-effective injection molding becomes. High-volume production often results in lower per-part costs, as the cost of tooling and setup is distributed across a larger number of parts. On the other hand, low-volume runs can have higher per-part costs due to the setup and tooling expenses, which are not amortized across many units.

Lead Time and Production Efficiency

Lead time is a critical factor in many industries, particularly those that require quick turnaround for product development or mass production. Injection molding is known for its efficiency once the mold is developed, but the time spent in mold development can vary depending on the complexity of the design and the materials used.

Mold Design Lead Time The design phase can take anywhere from a few weeks to several months depending on the complexity of the part and the mold. More intricate designs may require multiple iterations, and advanced techniques like mold flow analysis can add to the development time.
Production Lead Time Once the mold is ready, the actual production of the parts is fast. Injection molding cycles typically take a few seconds to a few minutes depending on the part size and material. This efficiency makes it an ideal choice for producing high volumes of parts with minimal lead time.
Reducing Lead Time To shorten lead time, manufacturers may use rapid prototyping methods, such as 3D printing, to create initial part prototypes before committing to full-scale mold development. Additionally, advanced simulation tools and CAD systems allow for faster design iterations and optimizations, cutting down the time needed for mold development.

Sustainability and Environmental Considerations in Injection Molding

Sustainability is becoming an increasingly important aspect of injection molding, as manufacturers seek to reduce their environmental impact and promote greener practices. Here are some key areas where sustainability can be incorporated into the mold development and manufacturing process:

Material Recycling One of the major benefits of plastic injection molding is the potential for recycling materials. Some manufacturers use recycled plastics or biodegradable materials in the molding process, reducing the overall environmental footprint. This trend is becoming more common as demand for sustainable products grows.
Energy Efficiency Injection molding machines consume significant amounts of energy during the molding process. Manufacturers are increasingly investing in energy-efficient machines, optimized production processes, and renewable energy sources to reduce the environmental impact of production.
Waste Reduction Effective waste management is crucial in injection molding. The use of hot runner systems can minimize material waste by reducing the amount of plastic needed to fill the runner system. Additionally, scrap plastic can often be recycled into new products, reducing waste sent to landfills.
Green Design Eco-friendly design practices are becoming an integral part of product development. This includes designing parts with reduced material use, optimizing the shape of the mold to minimize waste, and using materials that are easier to recycle or dispose of safely.

The Role of Automation in Injection Mold Manufacturing

Automation plays a significant role in modern injection molding processes. The integration of automated systems can increase efficiency, reduce costs, and improve consistency in the production of plastic parts. Automation is typically applied in various stages of the mold development and manufacturing process:

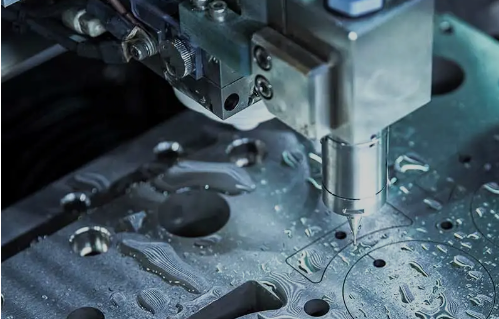

CNC Machining CNC (Computer Numerical Control) machines are used to precisely machine the mold cavities and other components. The use of CNC automation ensures high precision and reduces human error during the machining process.
Injection Molding Machines Modern injection molding machines are often automated, featuring advanced control systems to monitor and adjust parameters such as injection speed, pressure, and temperature. Automated machines can also handle tasks like part ejection and packaging, reducing the need for manual labor.
Robotics for Assembly and Handling Robotics are increasingly used to handle post-molding tasks, including part removal, inspection, assembly, and packaging. Robots ensure consistency and reduce the risk of damage during these processes, helping to maintain part quality and improve production speed.
Quality Control Automation Automated inspection systems are used to monitor the quality of parts during production. This can include optical inspection systems, coordinate measuring machines (CMMs), and automated testing systems that check for defects and measure dimensions to ensure parts meet quality standards.

FAQ for Injection Mold Development and Manufacturing

1. What is Injection Molding?

Injection molding is a manufacturing process used to produce parts by injecting molten material into a mold cavity. It is most commonly used for producing plastic parts, but metals and other materials can also be molded. The process is highly efficient and can create complex shapes with a high degree of precision.

2. What is Injection Mold Design?

Injection mold design refers to the process of designing a mold that will create a specific plastic part. The design must take into account factors such as part geometry, material properties, mold cooling, venting, and ease of part removal. Proper mold design is essential to ensuring that the parts produced are of high quality and that the manufacturing process is efficient.

3. What materials are used in injection molding?

Various materials can be used in injection molding, including:

Plastics: Polypropylene (PP), Polycarbonate (PC), Nylon (PA), Acrylonitrile Butadiene Styrene (ABS), and polyethylene (PE).
Metals: Some advanced injection molding techniques also allow for the molding of metal alloys such as aluminum or zinc.
Composites: These materials combine fibers with resins, enhancing properties such as strength and heat resistance.

4. What are the steps involved in injection mold manufacturing?

The key steps in injection mold manufacturing include:

Designing the mold: This involves CAD modeling and simulations to optimize the mold design.
Fabricating the mold: Machining the mold components, typically using CNC machines.
Testing the mold: The mold undergoes trial runs to ensure it produces high-quality parts.
Mold maintenance and repair: Routine checks and repairs are necessary to ensure longevity and consistent part production.

5. How long does it take to develop an injection mold?

The lead time for developing an injection mold typically ranges from a few weeks to several months, depending on the complexity of the mold and the part design. The design phase, mold fabrication, and testing contribute to this timeline.

6. How much does an injection mold cost?

The cost of an injection mold can vary widely depending on factors such as:

Complexity of the part design
Material selection
Size and number of cavities in the mold
Production volume
Mold durability (steel molds cost more than aluminum molds) For low-volume production, the mold cost might be lower, but for large production runs, the per-unit cost decreases as the mold is amortized over more parts.

7. What are the benefits of injection molding?

High production volume: Once the mold is created, the process can produce large quantities of identical parts in a short amount of time.
Precision and accuracy: Injection molding allows for high precision in part manufacturing, which is especially important in industries like automotive and electronics.
Cost-effective for mass production: The initial mold creation can be costly, but as production scales, the cost per part decreases significantly.
Versatility in design: Injection molding can produce complex shapes, undercuts, and thin-walled parts, making it suitable for a wide range of applications.

8. What is the difference between aluminum and steel molds?

Aluminum molds: These are typically used for low to medium-volume production runs. They are easier to machine and have a shorter lead time, but they wear out more quickly than steel molds.
Steel molds: These are more durable and are used for high-volume production runs. They are resistant to wear and can produce parts for an extended period, making them ideal for large production runs.

9. How can I reduce the cost of injection molding?

To reduce the cost of injection molding, consider:

Optimizing part design to minimize material waste and reduce the complexity of the mold.
Using less expensive materials when possible without compromising quality.
Increasing production volume to spread the mold costs over a larger number of parts.
Implementing efficient mold design to reduce cycle time and increase throughput.

10. What is the role of mold maintenance?

Mold maintenance is crucial to ensure the mold continues to produce high-quality parts. Regular inspection and cleaning prevent defects, while repairing damaged components can extend the life of the mold. Neglecting mold maintenance can lead to costly downtime, defects in parts, and shorter mold lifespan.

11. Can injection molds be reused?

Yes, injection molds can be reused multiple times, especially if they are made from durable materials like steel. The more durable the mold, the longer it can be used for repeated production runs, making it cost-effective for high-volume production.

12. What is a hot runner system in injection molding?

A hot runner system is a type of injection mold that uses heated channels to keep the plastic material molten during injection. This reduces the waste of material by eliminating the need for a cold runner system, where extra plastic is discarded. Hot runner systems improve efficiency and reduce material waste in large-scale production runs.

13. What is mold flow analysis?

Mold flow analysis is a computer simulation used to predict the behavior of molten plastic within the mold. It helps engineers identify potential issues such as air pockets, uneven material flow, and cooling inefficiencies. This analysis can optimize the mold design before physical production begins, saving time and reducing the risk of defects.

14. What are some common defects in injection molding?

Common defects in injection molding include:

Warping: Caused by uneven cooling or improper mold design.
Short shots: Occur when insufficient material fills the mold cavity.
Sink marks: Indentations that occur when the material cools too slowly or inconsistently.
Flash: Excess plastic that leaks out of the mold, causing rough edges.

15. What industries use injection molding?

Injection molding is used across various industries including:

Automotive: For producing components like dashboards, bumpers, and interior parts.
Consumer electronics: For creating cases, buttons, and internal parts.
Medical devices: To produce precision parts like syringes, connectors, and surgical tools.
Packaging: For making containers, bottles, and caps.
Toys and recreational products: For parts like action figures, models, and packaging.
